The link that is no longer missing - Jettyless Transfer

Jettyless Energy Transfer – The link that is no longer missing

Jettyless Energy Transfer – The link that is no longer missing

A jettyless transfer system is floating technology that enables safe and efficient transfer of fluids such as LNG, ammonia, bio fuels and Co₂ (for carbon capture and storage) between a carrier and an offshore or onshore terminal without a jetty.


The jettyless solution is prefabricated at a shipyard, eliminating the environmental impacts of the time- and resource -intensive construction of a jetty or a quay.


This jettyless innovation is changing the energy import and export landscape, making projects possible without the cost and inflexibility of traditional fixed-jetty infrastructure. Its flexibility and mobility enables energy distribution to areas previously considered infeasible due to high costs or challenging geography.


Not only does the jettyless transfer system contribute to major cost savings when compared to the traditional fixed infrastructure of jetties and quays, it also offers tremendous environmental benefits because it floats - leaving the marine environment where it operates completely untouched.


At Canaf Energy we believe that cleaner energy should be cheap and accessible. We make this possible by providing cost-efficient solutions to clients worldwide.

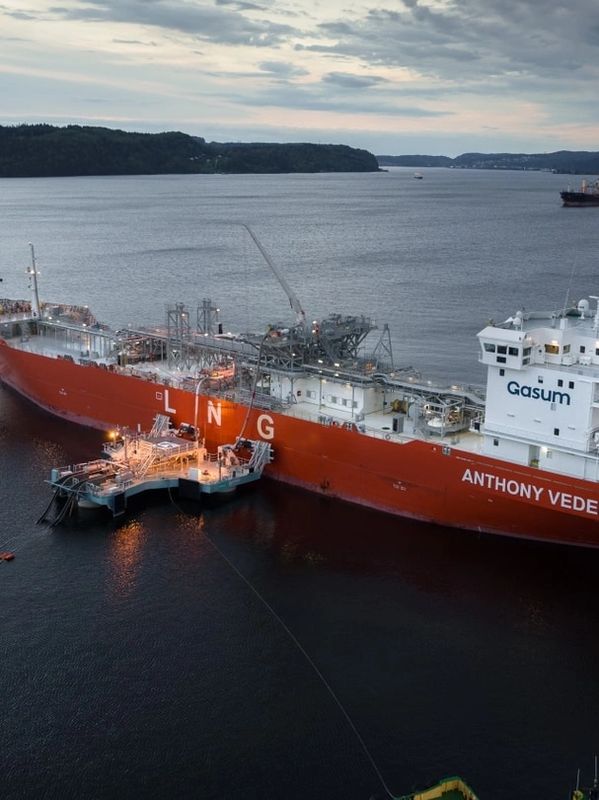

Go Jettyless with the IQuay™ - a smarter, floating offshore transfer solution

Go Jettyless with the IQuay™ - a smarter, floating offshore transfer solution

Canaf Energy provides unique floating technology, enabled by our IQuay™ technology. Our IQuay is a cost effective and flexible alternative to CAPEX- and resource-intensive jetty constructions, simplifying project permitting applications and responding to strict environmental regulations. The IQuay can be applied to a wide range of vessels and terminals, for loading and unloading, transferring LNG, ammonia,, Co₂, hydrogen or any other fluid.

IQuay™ Technical Highlights

STANDARD IQUAY

IQUAY FOR BUNKERING

LARGE SCALE IQUAY

The IQuay enables transfer of between a vessel and storage facilities and is fully qualified by DNV GL.

Distance from shore
50 - 800 m

Environment
Sheltered to harsh conditions

Flowrate
100 - 2,500 m3/h

Transfer lines
Floating cryogenic hoses

Carrier vessel size
1,000 - 266,000 m3

Design life
25 years

LARGE SCALE IQUAY

IQUAY FOR BUNKERING

LARGE SCALE IQUAY

We have leveraged on the Standard IQuay qualified design to develop solutions for large scale import and export between ship & shore.

Distance from shore
50 - 800 m

Environment
Sheltered to harsh conditions

Flowrate
2,500 - 12,000 m3/h

Transfer lines
Floating cryogenic hoses

LNGC Size
Up to 266,000 m3

Design life
25 years

IQUAY FOR BUNKERING

IQUAY FOR BUNKERING

IQUAY FOR BUNKERING

Bunkering offshore or in ports is possible with  Energy's floating solutions.

Distance from shore
Up to 300 m

Environment
Sheltered conditions

Flowrate
500 - 1,000 m3/h

Transfer lines
Rigid pipe

Vessel size
All

Design life
25 years

Reduced Cost and Lead Time

Reduced Cost and Lead Time

  • Cut capital spending significantly by avoiding large river, harbour or coastal engineering and construction works.
  • Advanced technology and simple construction with low operational and maintenance costs.
  • Lighten the permit process for your energy project and cut project schedules in half.
  • Combined with a floating terminal, power supplies can ramp up quickly and effectively.
  • Ideal floating solution for areas which are environmentally sensitive.

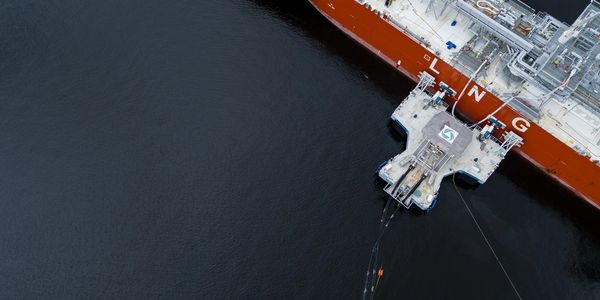

Universal Attachment System

Universal Attachment System

  • Robust, reliable and highly efficient connection.
  • Connection / disconnection in a matter of seconds.
  • Reduces relative motions between the IQuay platform and the vessel.
  • Motions, forces and holding capacity continuously monitored and interlinked to ESD system.
  • Attachment system is based on technology with more than two decades and 700.000 successful mooring operations to date.

Connects to a wide range of vessels

Connects to a wide range of vessels

  • Vacuum pads engage with a flat portion of freeboard directly below the manifold position, meaning connection can be with virtually any vessel.
  • Large tidal variations can pose a problem for a jetty. The IQuay platform is floating and follows the carrier with the tide.
  • The process system on the IQuay can be sized according to flow rate requirements, thereby accommodating small- and large scale carriers, including bunkering capabilities.

Floating Flexible Hoses

Floating Flexible Hoses

  • Floating flexible cryogenic hoses are fully qualified by Bureau Veritas, and meets all the requirements under EN1474-2.
  • Triple redundant integrated leak monitoring system.
  • Continuous temperature measurement along the whole length of the line.
  • Superior insulation with ensures minimum boil-off gas generation.
  • Flexible cryogenic hoses can be provided from 6 to 20 inches in diameter.

Unmanned during operation - controlled remotely

Unmanned during operation - controlled remotely

  • All systems are remotely monitored and operated from the onshore control room.
  • Full overview of the process flow parameters and status of all main systems onboard.
  • Complete CCTV coverage of the platform deck areas provides the operator onshore with eyes on the platform.
  • Manning is only required during connection to and release from the carrier vessel, whereby crew is supplied from the tugboat.

Mooring System

  • Standard Multi Buoy Mooring (MBM) berths for mooring of the LNG carrier.
  • The IQuay platform is moored with a few mooring buoys in idle condition.
  • The number of mooring buoys can be between 2 and 8, depending on carrier size and metocean conditions at the project site.
  • The mooring buoys are equipped with quick release hooks for safe and efficient cast off.
  • Highly suited to areas of environmental sensitivity due to limited impact to the seabed.
